25000 Liter Tank Containers

A versatile tank container utilized by logistics service providers globally

The 25000 liter tank containers can be utilized for a variety of cargoes and shipped wolrldwide. It is optimized for chemical grade and food grade transport via truck, ship, barge or rail. Ideally suited for international logistics.

These containers come equipped with B Style walkways, offering a larger area of coverage when working on the top of the container, thus increasing safety.

 Our global inventory of equipment, supported by a network of experienced personal and a global fleet management system, deliver the confidence you are looking for in a leasing partner. Our team of technical experts are here to support you with any questions you may have on our equipment.

Lightweight design: 3670 kg

Dimensions : 20 feet (L) x 8 feet (W) x 8.5 feet (H)

US Gallon capacity: 6604 U.S. gallons

Insulated and fitted with heating and cooling coils

Tank material : 4.4 mm equivalent reference steel thickness, 316L stainless steel

Approvals : All global approvals for international transport as UN Portable tank including CSC, TC, FRA, UK Dft, TIR, IMDG, RID/ ADR, US DOT/ CFR 49, UIC and other local approvals.

Full frame design

Working pressure: 4 bar/ 58 psi

Bottom valve: 80 mm / 3 inches – 45° foot valve + stainless steel butterfly valve with 3 inch BSP thread and cap. European manufacturing.

Fitted with three closures on the bottom valve to reduce or eliminate the chance of any product spillage

Pressure relief valve set to open and close in case of over pressurization

Fusible link for automatic valve closure in case of fire

Valve boxes on the top of the tank with drain tubes

Emergency valve closure cable on the side of the tank

B Style walkways built of marine grade aluminium

Grounding connection

Provision to install handrails

Rockwool insulation in 50 mm thickness with aluminum foil, where possible and protected by GRP cladding

Heating/cooling coils with 12 m2 effective heating surface and 4 bar working pressure

Digital temperature gauge fitted as standard equipment

Design temperature: -40 C to 130 C (Loading temp up to 150C)

Corner castings with standard twist lock connections

Approved for rail transport globally

Built for international ocean shipping

Utilized for over the road trucking domestically and across borders

Maximum Gross Weight of 36000 kg

Siphon tube (top discharge)

Various valve options

GPS tracking and telemetry systems for product and container monitoring

Collapsible handrails

Ground-level operated vapor return lines

Questions about our 25000 Liter Tank Containers?

Contact your nearest Raffles Lease Office
Locations

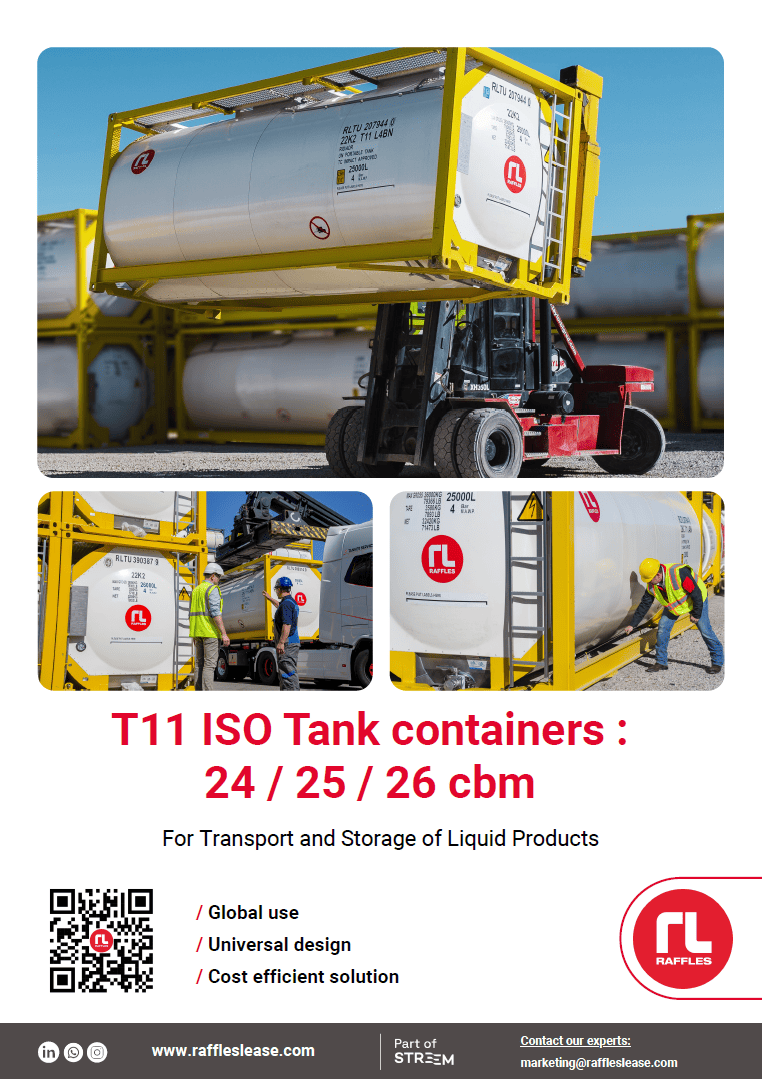

Brochure
