26000 Liter Tank Containers

A versatile tool for intercontinental bulk liquid transport of lightweight liquid products with and without baffles

The 26000 liter tank container is our largest within the standard ISO dimentions. It is optimized for chemical grade and food grade transport in areas with higher weight limits for road or rail transport. Ideally suited for most Euopean countries & throughout Asia.

This model of tank container is also suited for transport of liquid products that are considered “light” with a lower specific gravity. Our 26000L tank containers optimize payloads for products in this category.

These containers come equipped with baffles and ground operated vapor return lines as standard safety components.

Our global inventory of equipment, supported by a network of experienced personal and a global fleet management system, deliver the confidence you are looking for in a leasing partner. Our team of technical experts are here to support you with any questions you may have on our equipment.

Technical Specifications

Lightweight design: 3730 kg

Dimensions : 20′ ISO: 20’L x 8’W x 8.5′ H

Insulated and fitted with heating and cooling coils

Tank material : 4.4 mm equivalent reference steel thickness, 316L stainless steel

Approvals : IMO/UN, RID, ADR, US DOT CFR49, UIC, TIR, CSC, Transport Canada, SELO

Full frame design

Working pressure: 4 bar/ 58 psi

Bottom valve: 80 mm / 3 inches – 45° foot valve + stainless steel butterfly valve with 3 inch BSP thread and cap. European manufacturing.

Safety Features

Baffles for surge protection

Ground-level operated vapor return lines

Fitted with three closures on the bottom valve to reduce or eliminate the chance of any product spillage

Pressure relief valve set to open and close in case of over pressurization

Fusible link for automatic valve closure in case of fire

Valve boxes on the top of the tank with drain tubes

Emergency valve closure cable on the side of the tank

B Style walkways built of marine grade aluminium

Grounding connection

Provision to fit handrails

Built for intermodal transport

Corner castings with standard twist lock connections

Approved for rail transport globally

Built within ISO dimensions for ship and barge logistics

Utilized for over the road trucking domestically and across borders

Maximum Gross Weight of 36000 kg (79366 lbs.)

Optimized for Temperature Sensitive Products

Constructed with 50 mm of Rockwool insulation

Insulation protected by GRP cladding

Heating/cooling coils with 12m2 effective heating surface and 4 bar working pressure.

Temperature gauge fitted as standard equipment

Design temperature: -40 C to 130 C (Loading temp up to 150C)

Specification Options

Collapsible handrails

Full coverage walkways

Siphon tube (top discharge)

Various valve options

GPS tracking and telemetry systems for product and container monitoring

The Benefits and Advantages of Baffles in Tank Containers

Baffles are partitions, placed vertically or horizontally, in liquid pressure vessels to provide surge protection. Baffles reduce cargo movement during transport and enhance safety. Without baffles, the liquid cargo can surge when the transport vehicle stops or starts quickly, which can lead to a rollover or disengagement from the chassis, railcar or other platform.

Baffles also provide a way for cargo to be safely shipped in quantities more than 20% and less than 80% of the total capacity of the container. A significant value for high and low density products. Raffles Lease offers tank containers with curved baffles and V-shaped baffles.

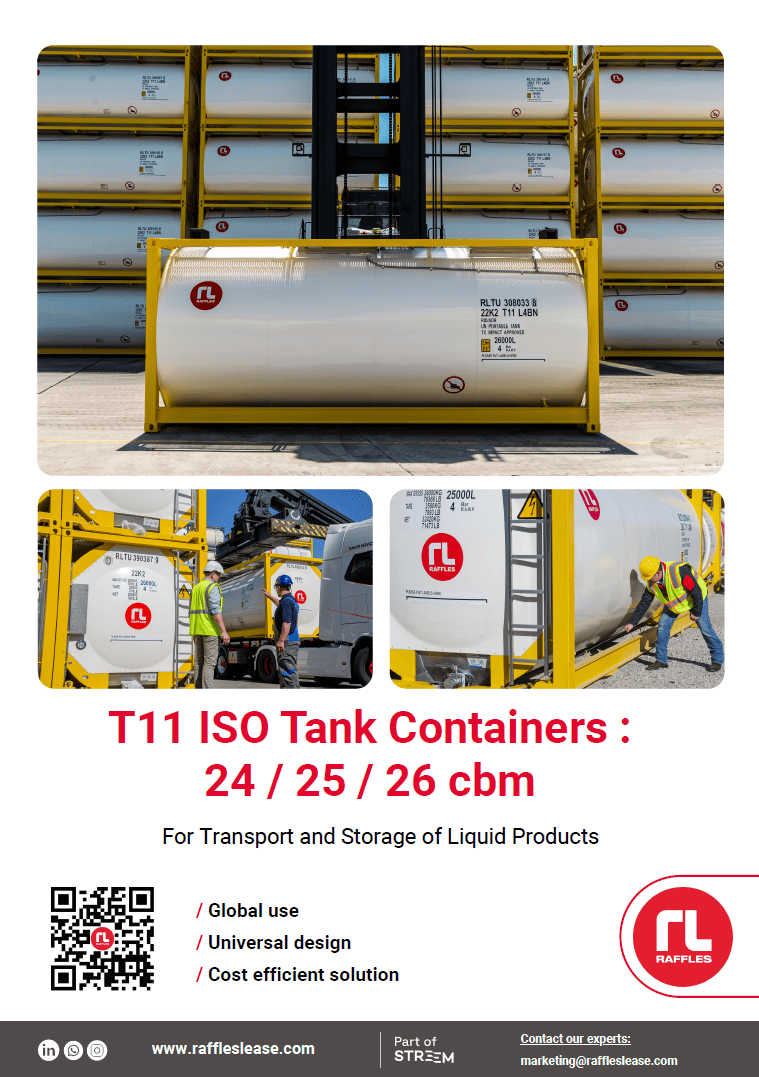

Brochure
